1. Surveillance Power Enclosure: Optimal Protection & Power Delivery

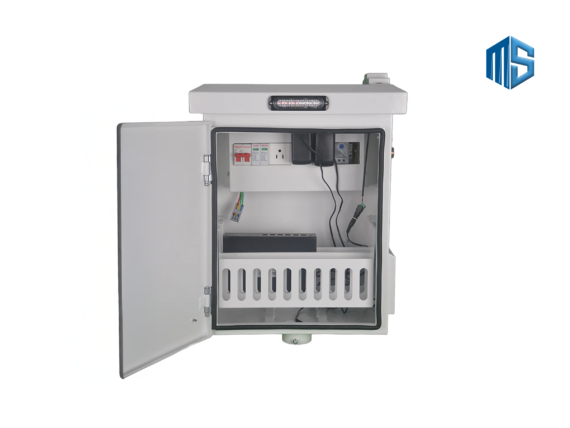

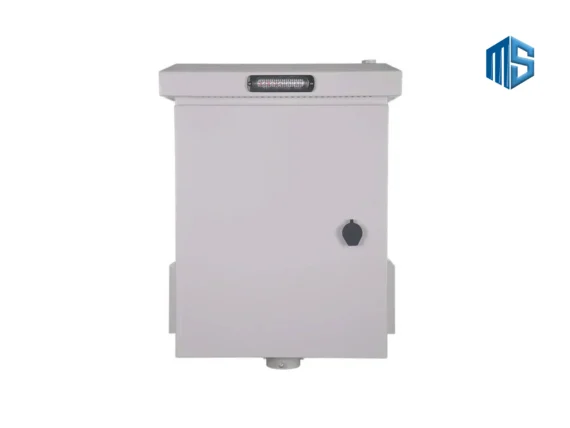

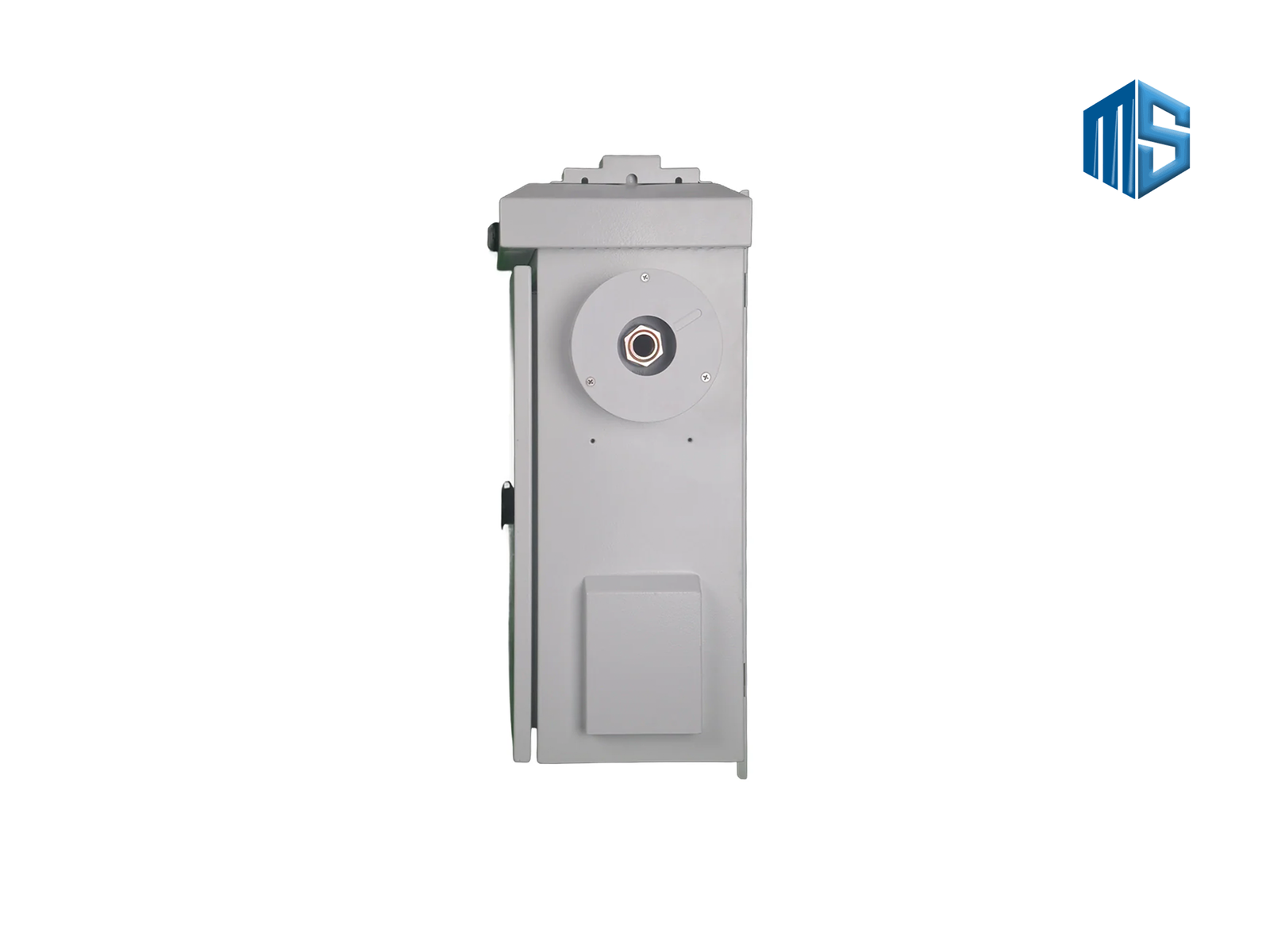

The Surveillance Power Enclosure is a secure, weatherproof power management cabinet designed for surveillance applications in both indoor and outdoor environments. With built-in surge protection, temperature-controlled cooling fan, and AC output sockets, it ensures reliable power supply to devices such as NVRs, PoE switches, routers, and cameras. The cabinet features a flashing red and blue warning strobe, ideal for deterrent purposes in high-risk areas.
2. Specifications
- AC Input: 110V 16A Max
- AC Output: 3 × 110V 5A Sockets
- Lightning Protection: Built-in 6KV Surge Protection Device
- Cooling: Integrated Temperature-Controlled Fan
- Power Control: AC Power Circuit Breaker Included
- Alarm Feature: Red & Blue Flashing Strobe Light
- IP Rating: IP55 – Weatherproof
- Material: SPCC Steel
- Surface Finish: Powder Spraying
- Weight: 15 KG
- Size: H=19.6″ × L=14″ × W=9″
3. Accessories & Mounting Options
- Bullet Camera Installation: ¾ inch Adapter / 4 pcs
- Speaker Installation: PM4*10 Screws / 3 pcs
- PTZ Camera Installation: PM6*12 Screws / 3 pcs
- Dome Camera Installation: PM4*16 Screws / 8 pcs
- Wall Mount Kit: Ø6*60 Screws / 4 sets
- Pole Mount Kit: 18×350 mm Holding Hoops / 2 pcs
- Network Connection: CAT6 Cables / 4 pcs
- Power Connection: AC Power Cable / 1 pc
Supports quick deployment for dome, bullet, PTZ cameras, 4G routers, NVRs, and IP speakers.
4. Lead Time & Warranty
✔️ Quick Installation – Plug & Play for All Major Surveillance Devices
✔️ Average Lead Time: 2–4 Weeks
✔️ Manufactured with High-Grade Materials for Long-Term Reliability
✔️ 1-Year Warranty – Covers Electrical Components & Enclosure Quality
