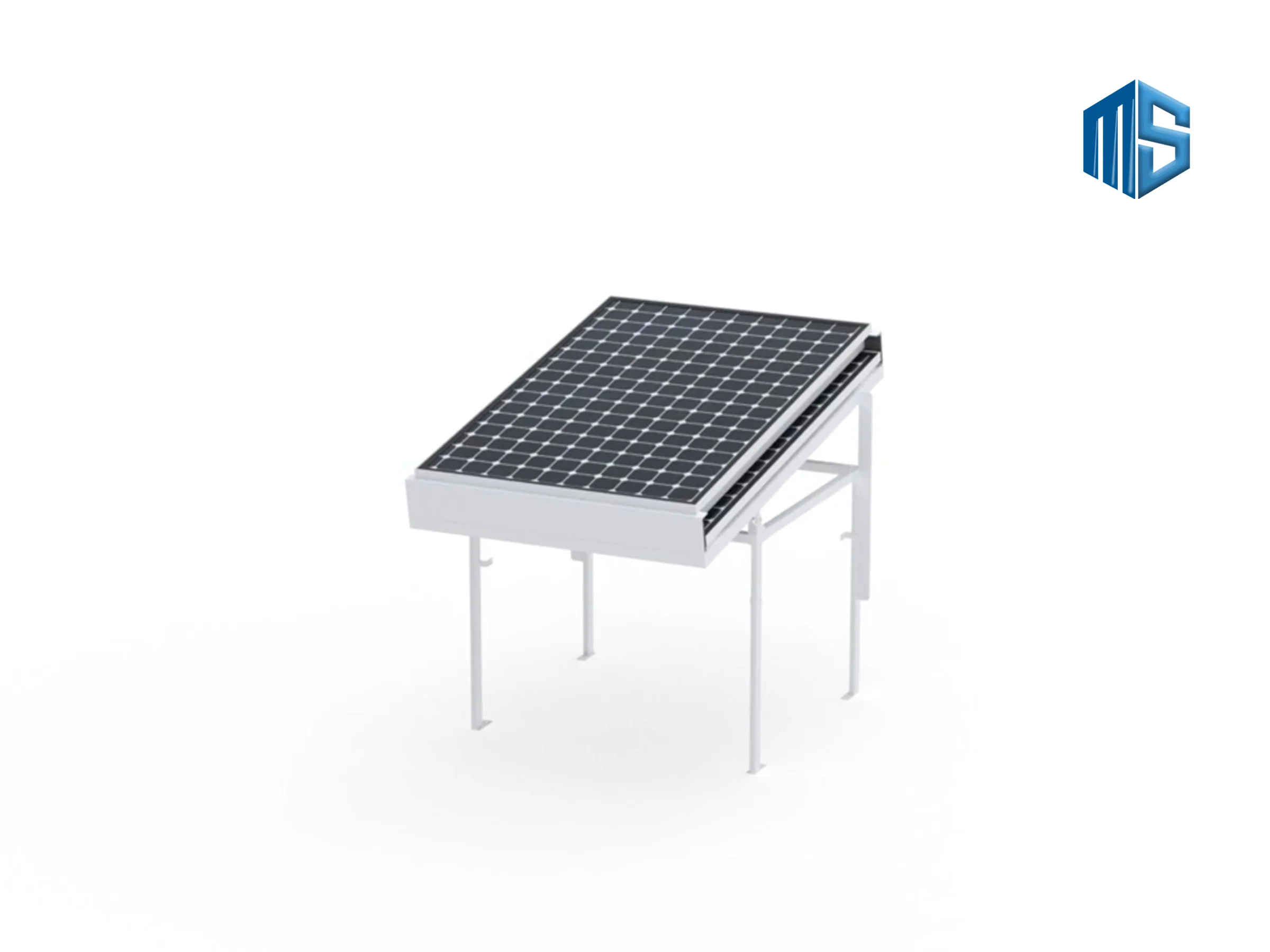

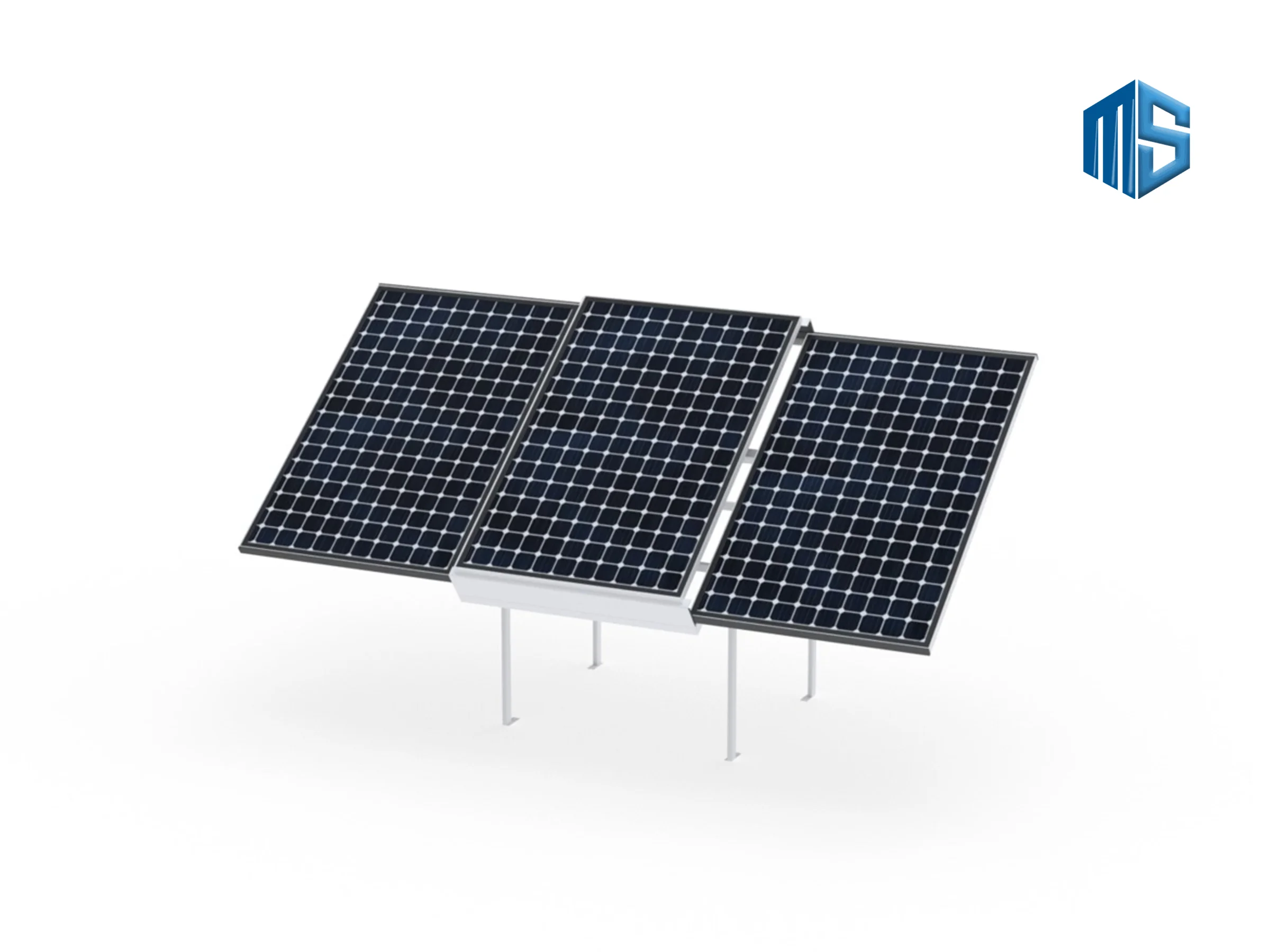

1. Adjustable Solar Rack with Lift Kit: Optimize Performance, Deploy Flexibly
The Adjustable Solar Rack with Lift Kit is a versatile, motorized solar mounting solution designed to support high-efficiency 400W solar panels. Ideal for mobile surveillance trailers, off-grid power stations, and solar backup systems, this rack provides flexible tilt adjustment via an integrated actuator system—maximizing energy capture throughout the day. Its heavy-duty steel structure ensures excellent stability and weather resistance for both stationary and mobile deployments.
2. Specifications

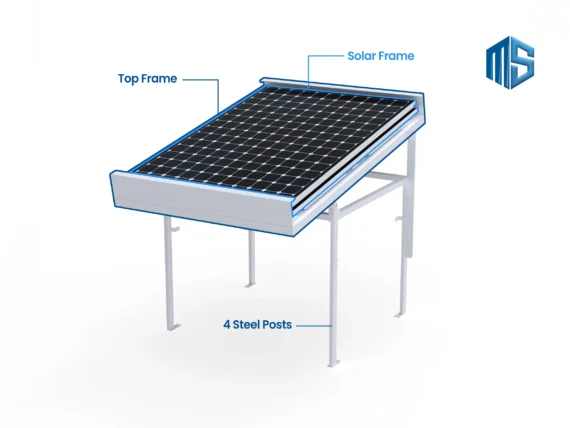

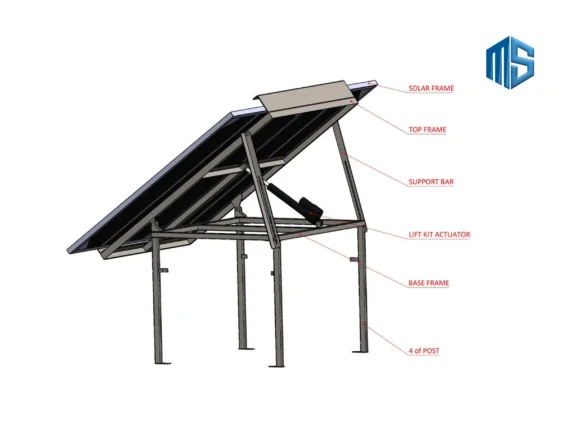

– Frame Components

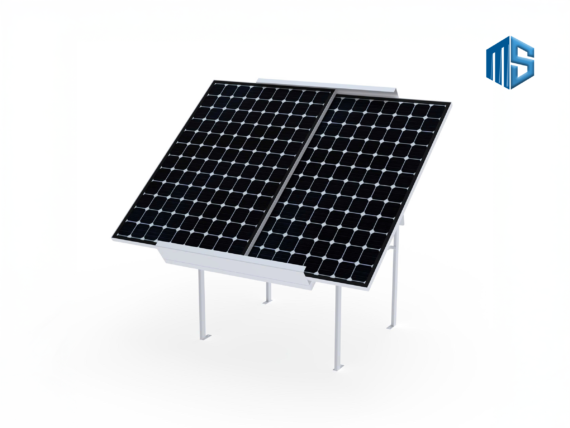

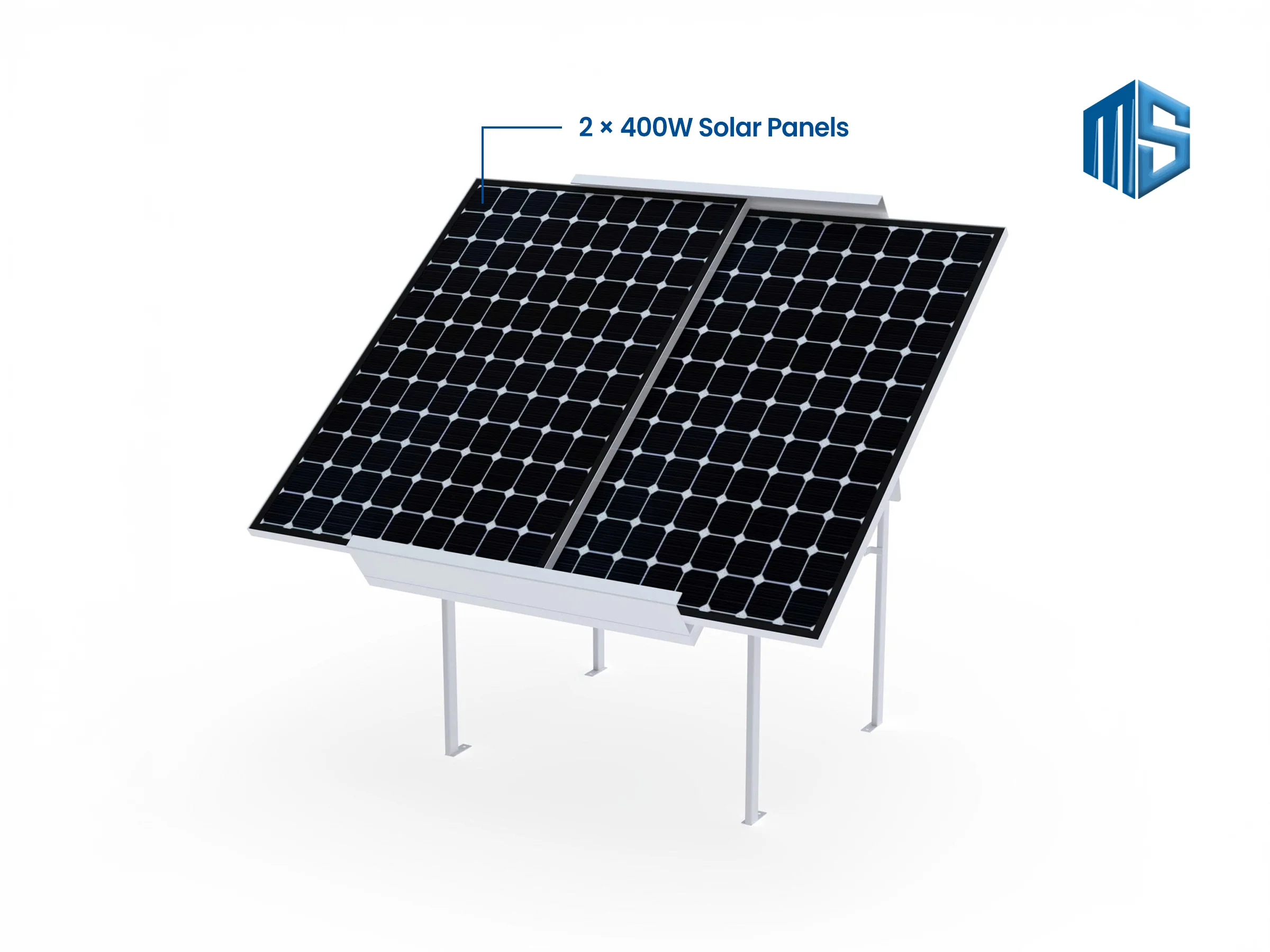

– Solar Frame: Engineered to hold 2 × 400W solar panels
– Top Frame & Support Bars: Provides tilt stability

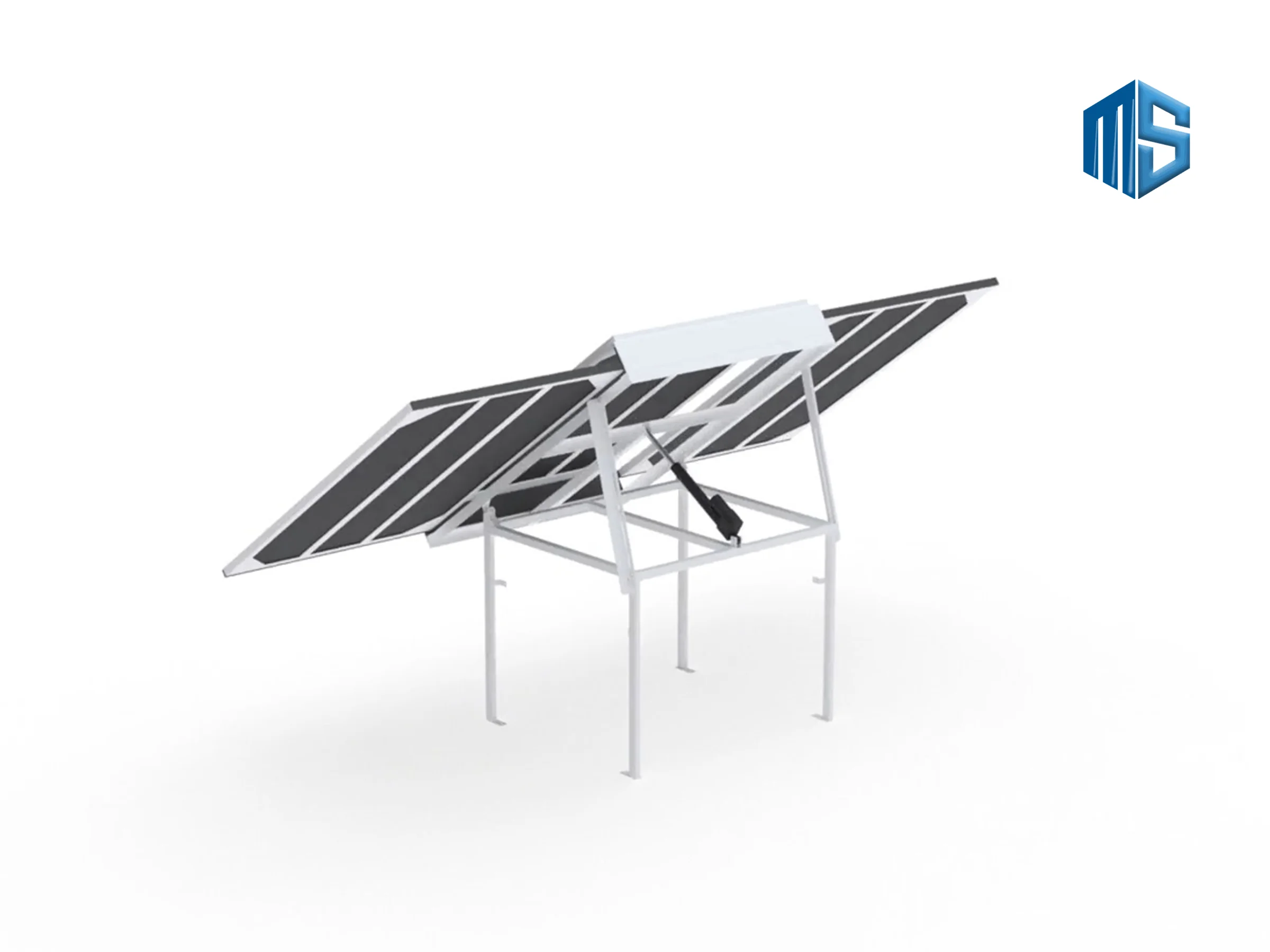

– Lift Kit Actuator: Electric linear actuator for tilt adjustment
– Base Frame: Reinforced rectangular base for mounting
– 4 Steel Posts: Anchor legs for ground or trailer platform installation
– Compatible Solar Panel Specs (JJN 400W Bifacial – Recommended)
- Power: 400W
- Operating Voltage: 31.05V
- Operating Current: 12.89A
- Open Circuit Voltage: 37.00V ±3%
- Short Circuit Current: 13.78A ±3%
- Dimensions (L × W × H): 67.8″ × 44.7″ × 1.2″
- Weight: 47.3 lbs
- Material Type: Monocrystalline Silicon
- Connector Type: MC4
Note: Solar panels are not included with the rack.
3. Lead Time & Warranty
✔️ Plug-and-Play Design – Ready for Installation
✔️ Lead Time: 2–4 Weeks Average
✔️ Factory Direct Pricing – Manufactured in the USA
✔️ 1-Year Warranty – Covers Frame
